• the process made easy. Spend time efficiently

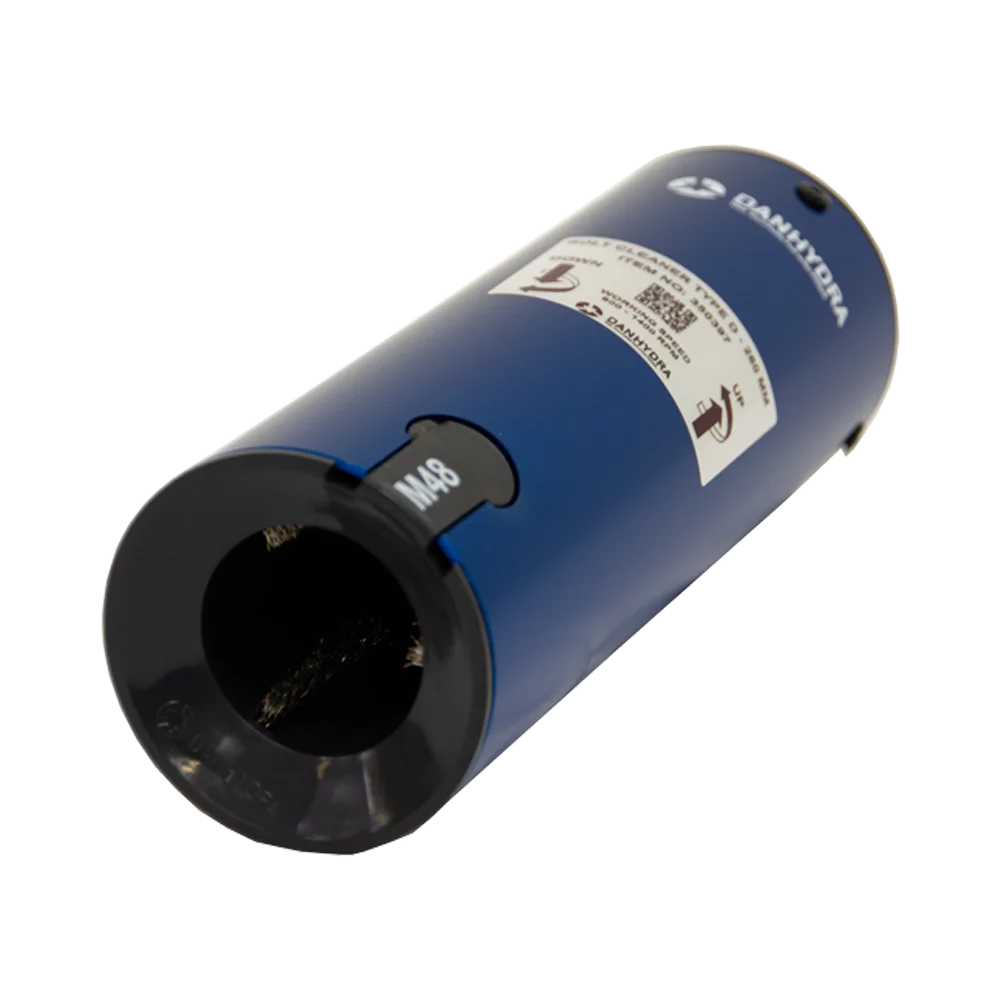

Product description

Clean wind turbine bolts are essential to control the bolt tensioning and torquing. The Danhydra bolt cleaner is mainly developed to prepare wind turbine foundation bolts for tower installation. This tool ensures efficient cleaning of anchor bolts and instantly removes corrosion and dirt.

Wind turbine bolt cleaning is made easy due to the intelligent and fast applicable design. This means spending your resources on activities that matter. The Danhydra bolt cleaning tool has a simple intuitive design. The low number of parts will allow you to work with speed and ensures a high-quality result.

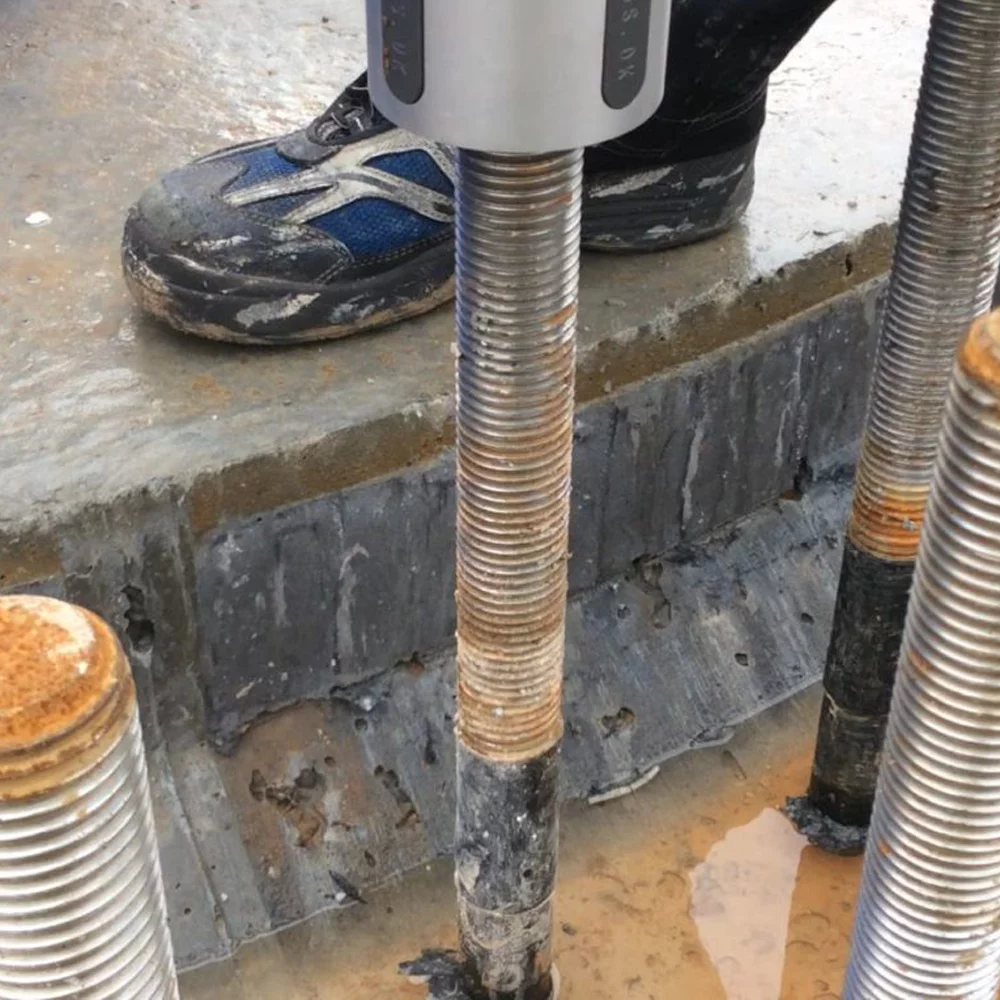

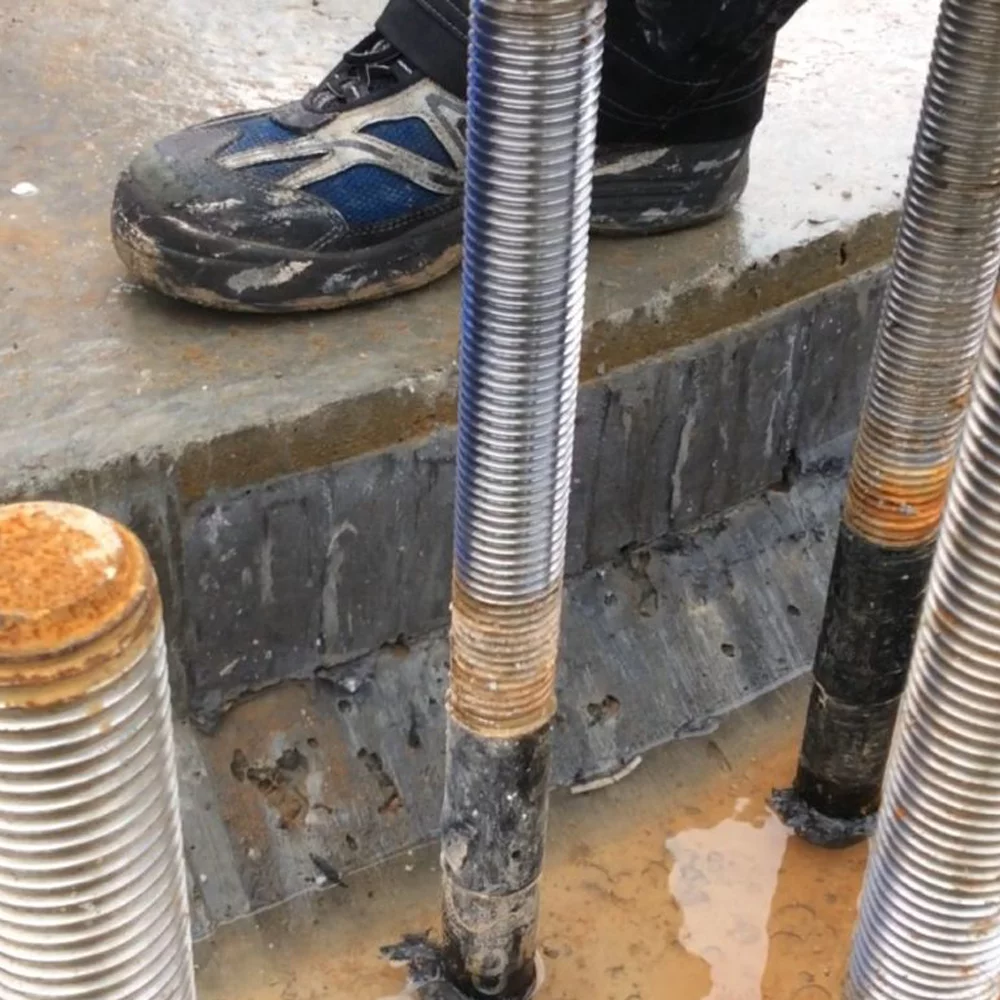

Basically, using the Danhydra bolt cleaner, eliminates time consuming manual cleaning of the foundation bolts and ensures high quality repeatability.

When needed, changing inserts of the bolt cleaning tool are quick and easy to replace.

Technical specifications

The Danhydra bolt cleaner can be used for other applications in the industry in general. It is compatible with a wide range of anchor bolts from M30 to M76 with effective lengths from 230mm to 330mm. Se the full range in the section Sizes and item numbers.

The materials used for the bolt cleaner are aluminum and POM, which ensures high durability through  a combination of:

  • High strength, rigidity and toughness
  • Good impact strength, even at low temperatures
  • Outstanding wear resistance and sliding properties
  • High dimensional stability
Make an inquiry
Material Combination of aluminium & POM
Spare parts Ask us for spare inserts. Include information on type of bolt cleaner to ensure proper fit

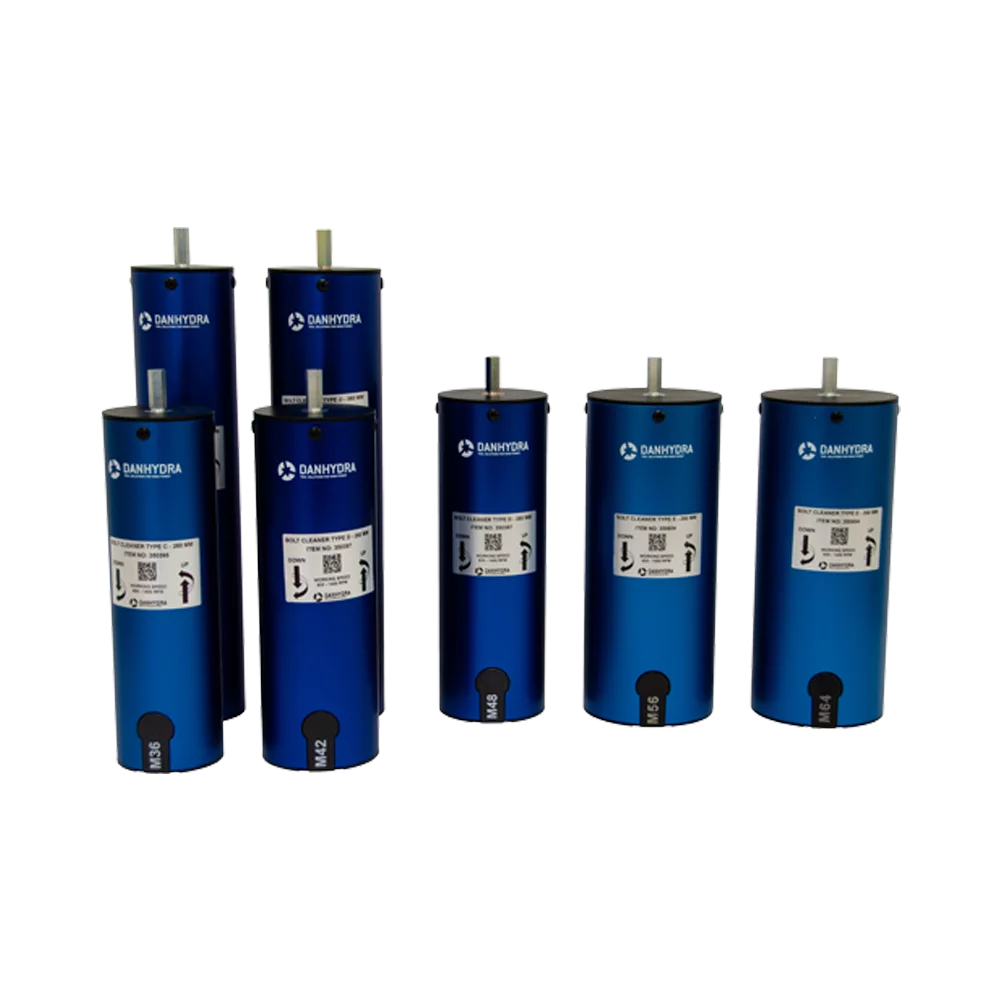

Variant Item number
M30, Effective length 230mm (8,4") 350526
M30, Effective length 330mm (12,5") 350530
M36, Effective length 230mm (8,4") 350527
M36, Effective length 330mm (12,5") 350531
M42, Effective length 230mm (8,4") 350528
M42, Effective length 330mm (12,5") 350532
M48, Effective length 230mm (8,4") 350529
M48, Effective length 330mm (12,5") 350533
M56, Effective length 230mm (8,4") 350596
M64, Effective length 230mm (8,4") 350597
M72, Effective length 230mm (8,4") 351096
M76, Effective length 230mm (8,4") 351159

Product inquiry

Questions? You are more than welcome to get in touch to either learn more or inquire about our products. We will process your inquiry with speed.

Additional information (if possible):

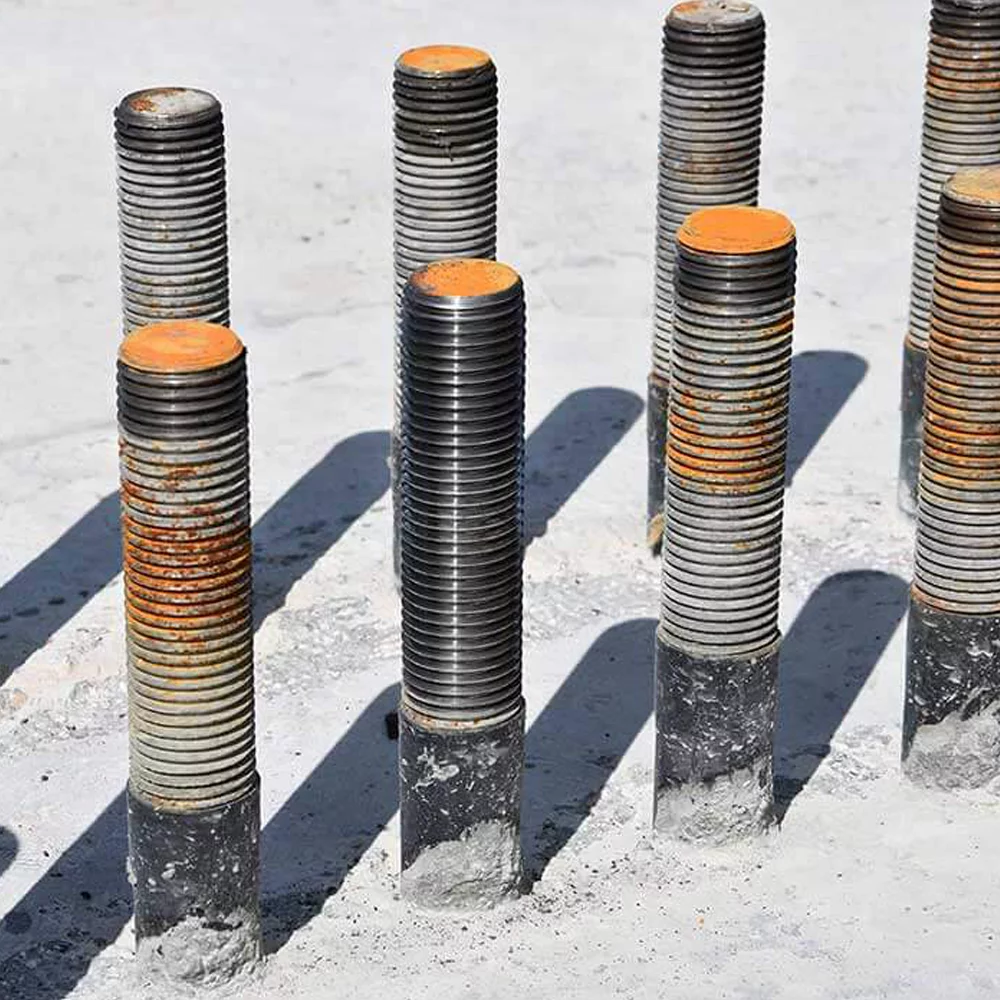

Clean anchor bolts
